Good quality ball mill ball mining ball mill equipment

FOB Reference Price:Get Latest Price
$30,000.00 - $89,999.00 / Sets | 1 Set/Sets (Min. Order)
Power(W):
15-800
Model Number:
1200*2400
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New
Type:
Ball Mill
Motor Type:
AC Motor
Capacity(t/h):
0.4-180
Place of Origin:
Henan, China
Brand Name:
ZONEDING
Dimension(L*W*H):
According to capacity
Weight:
3.4-137
Certification:
CE,BV,ISO9001
Warranty:
one year
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Application:
Kaolin, Quartz, Feldspar, etc.
Price:
negotiation
Operating training:
provision of service
Flowchart:
provision of service
Training:
Provide
Instalation:
Provide
Color:
As customers' request
Quality:
High Reputation
Product Certification Verified
CE Certified.
Valid from 2016-05-27 until 2020-07-15
Supply Ability
Supply Ability:
90 Set/Sets per Quarter New design mini grinding machine ball mill for aluminium powder
Packaging & Delivery
Packaging Details
Export standard container or as customers' requirements.(Small Size Ball Mill Price for Sale)
Port
SHANGHAI,QINGDAO,DALIAN for Small Size Ball Mill Price for Sale Export

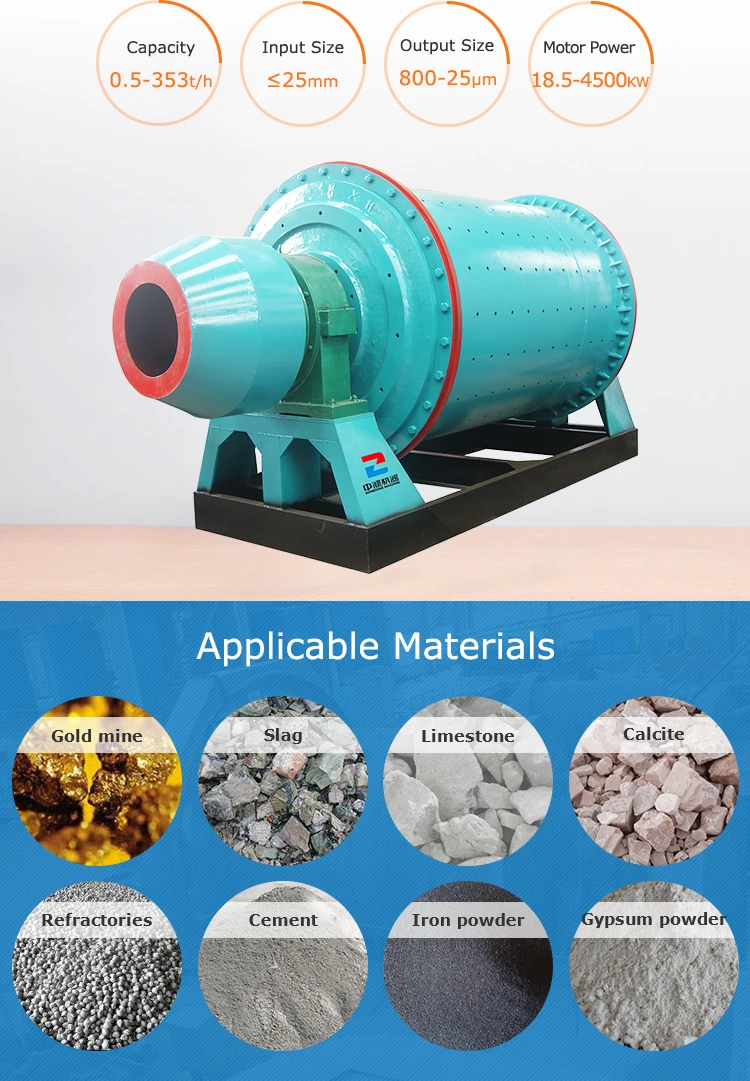

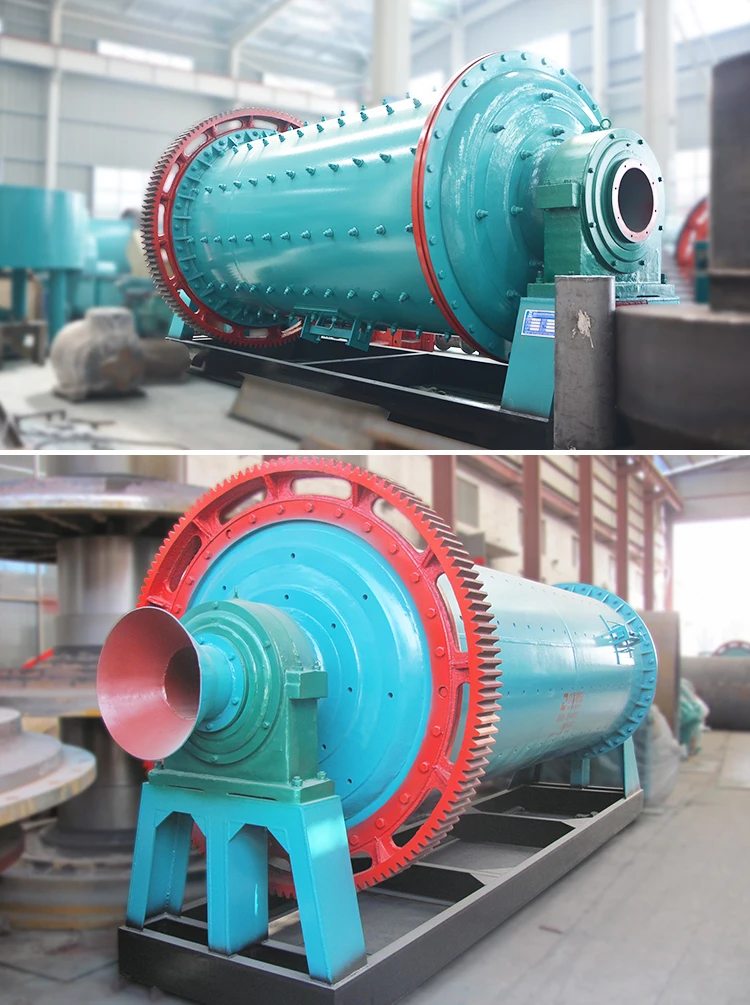

Good quality ball mill ball mining ball mill equipment

Zoneding ball mill is a key equipment to grind the crushed materials, which is widely used
in the manufacture industries, such as cement, silicate, new building material, refractory
material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

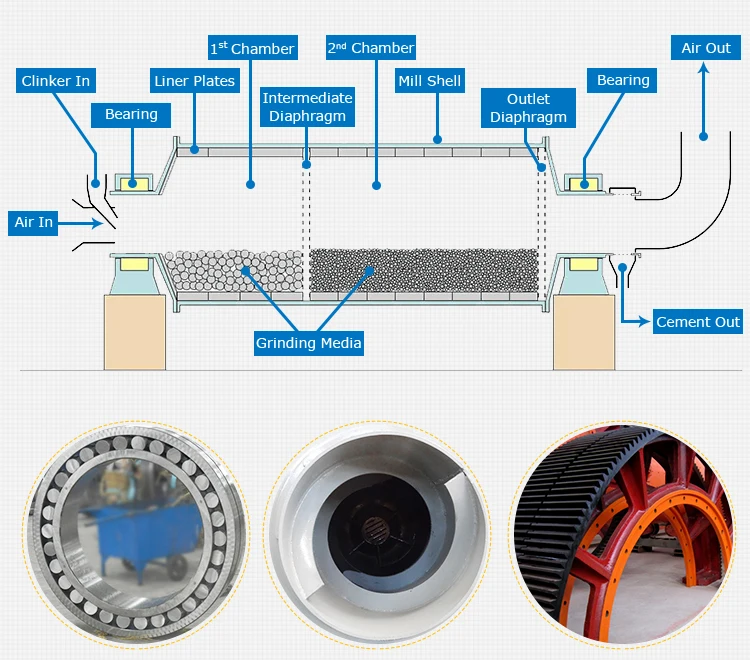

Working Principle

When the materials processing, they are transferred to the grinding chamber through
the quill shaft uniformly. Firstly the centrifugal force caused by rotation of barrel
brings the steel balls to a certain height, then the steel balls impact and grind the
materials into fine powder over a period of several hours. The ground materials are
discharged through the discharging board ,lastly the grinding process is finished.

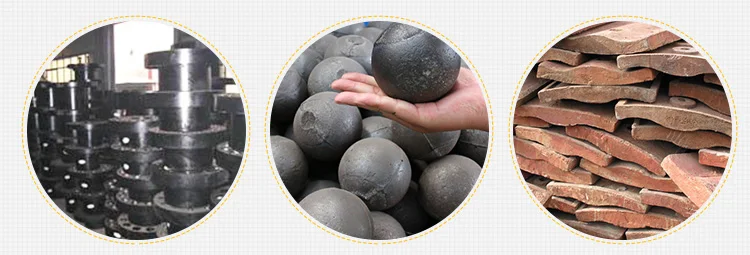

Bearing
Feeder
Gear
Coupling
Steel Ball
Liner

           Technical Parameters      VIEW MORE»»

ModelSpeed (r/min)Max. weight of balls (t)Input size (mm)Output size (mm)Power (kw)Capacity (t/h)Weight (t)
Φ900×1800371.8≤150.075-0.89150.5-23.4
Φ900×2100372.3≤150.075-0.418.50.4-23.9
Φ900×3000353.85≤250.075-0.4301.1-2.57.78
Φ1200×2400354.6≤250.075-0.4301.3-3.28.65
Φ1200×2800355.4≤250.075-0.4371.5-3.710.02
Φ1200×4500358.6≤250.075-0.4452.7-6.7914
Φ1500×3000299≤250.047-0.4753.3-8.214.12
Φ1500×35002910.5≤250.047-0.4753.3-8.515.64
Φ1500×45002913.5≤250.047-0.4904.5-1220
Φ1500×57002917≤250.047-0.41102.6-1421.5
Φ1830×30002413.5≤250.047-0.41354-1528
Φ1830×36002414≤250.047-0.41354-1529
Φ1830×45002420≤250.047-0.41554-1932
Φ1830×70002431.5≤250.047-0.42106-2237.5
Φ2100×30002218≤250.047-0.42106.4-2840.79
Φ2100×36002220≤250.047-0.42107-2842
Φ2100×40002221.5≤250.047-0.42107.6-2843.45
Φ2200×360021.725≤250.047-0.42455.2-3244
Φ2200×700021.746≤250.047-0.438015-3863
Φ2400×36002128≤250.047-0.43208-6047
Φ2400×45002135≤250.047-0.43808.5-6070.5
Φ2700×360020.740≤250.047-0.440012-8075.5
Φ2700×450020.748≤250.047-0.445012-90102
Φ3200×40001865≤250.047-0.480030-180137

Note: Any change of technical data shall not be advised additionally.

Customer Case

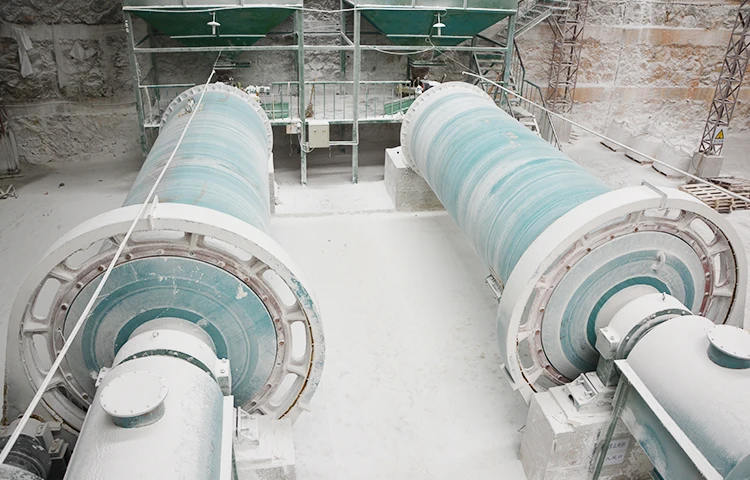

Mongolia Limestone Grinding Project

Input Size: 20mmOutput Size: 150meshCapacity: 50t/h

Equipment: Φ2100X2400 Ball Mill, Dust Collector, Ball Mill Spare Parts

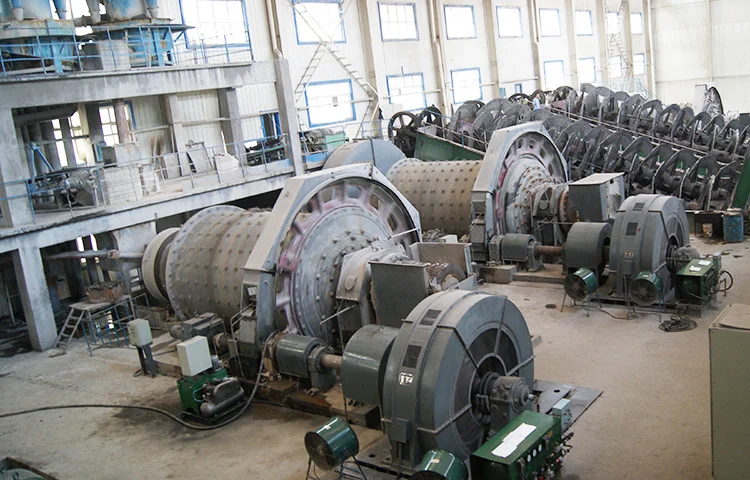

Molybdenum Ore Beneficiation Plant in Philippines

Capacity: 1000t/dRaw Material: Molybdenum Ore

Equipment: Jaw Crusher, Ball Mill, Spiral Classifier, Belt Conveyor, Steel Balls
