Energy saving 900*1800 grinding ball mill machine ball mill prices

FOB Reference Price:Get Latest Price
$5,000.00 - $50,000.00 / Set | 1 Set/Sets (Min. Order)
Power(W):
15-800 kw
Model Number:
Various
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 Year, one year
Place of Origin:
Henan, China
Brand Name:
ZONEDING
Weight:
3.4-37 t
Certification:
ISO, BV, CE
Type:
Ball Mill
Motor Type:
AC Motor
Capacity(t/h):
0.5-80 tph
Dimension(L*W*H):
According to models
Applicable Industries:
Farms, Energy & Mining
After-sales Service Provided:
Engineers available to service machinery overseas, Video technical support
Product name:
Hot Sale Gold Mining Small Mini Ball Mill
Machine type:
Mineral ore powder making
Processed materials:
Stones and ores
Spare parts supply:
Paid
Operation training:
Provide
Flowchart:
Provide
Color:
Customerized
Price:
Negotiable and reasonable
Product Certification certification
CE Certified.
Valid from 2016-05-27 until 2020-07-14
Supply Ability
Supply Ability:
90 Set/Sets per Quarter Energy saving 900*1800 grinding ball mill machine ball mill pric
Packaging & Delivery
Packaging Details
Export standard container or as customers' requirements.(Hot Sale Gold Mining Small Mini Ball Mill)
Port
Qingdao, Shanghai, Dalian Port for Hot Sale Gold Mining Small Mini Ball Mill Export
Video Description

BallMill01

Magnetic Separator FLotation Machine Spiral Classifier Dryer

Ball Mill

Energy saving 900*1800 grinding ball mill machine ball mill prices

Zoneding ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

Energy saving 900*1800 grinding ball mill machine ball mill prices

1. When the diameter of the ball mill is less than 3200mm, its conventional configuration is using rolling bearing instead of bush sliding bearing, energy saving 10% - 20%;

2. When the diameter of the ball mill is more than 2700mm, its conventional configuration is using slow driving device for installing liner and maintenance;

3. When the diameter of the ball mill is less than 1500mm, its conventional configuration is monolithic large chassis, then reduce installation requirements and shorten installation time.



Technical Parameters



ModelSpeed (r/min)Max. weight of balls (t)Input size (mm)Power (kw)Capacity (t/h)Weight (t)
Φ900×1800371.8≤15150.5-23.4
Φ900×2100372.3≤1518.50.4-23.9
Φ900×3000353.85≤25301.1-2.57.78
Φ1200×2400354.6≤25301.3-3.28.65
Φ1200×2800355.4≤25371.5-3.710.02
Φ1200×4500358.6≤25452.7-6.7914
Φ1500×3000299≤25753.3-8.214.12
Φ1500×35002910.5≤25753.3-8.515.64
Φ1500×45002913.5≤25904.5-1220
Φ1500×57002917≤251102.6-1421.5
Φ1830×30002413.5≤251354-1528
Φ1830×36002414≤251354-1529
Φ1830×45002420≤251554-1932
Φ1830×70002431.5≤252106-2237.5
Φ2100×30002218≤252106.4-2840.79
Φ2100×36002220≤252107-2842
Φ2100×40002221.5≤252107.6-2843.45
Φ2200×360021.725≤252455.2-3244
Φ2200×700021.746≤2538015-3863
Φ2400×36002128≤253208-6047
Φ2400×45002135≤253808.5-6070.5
Φ2700×360020.740≤2540012-8075.5
Φ2700×450020.748≤2545012-90102
Φ3200×40001865≤2580030-180137

Note: Any change of technical data shall not be advised additionally.

Applicable Materials & Application Area

Energy saving 900*1800 grinding ball mill machine ball mill prices

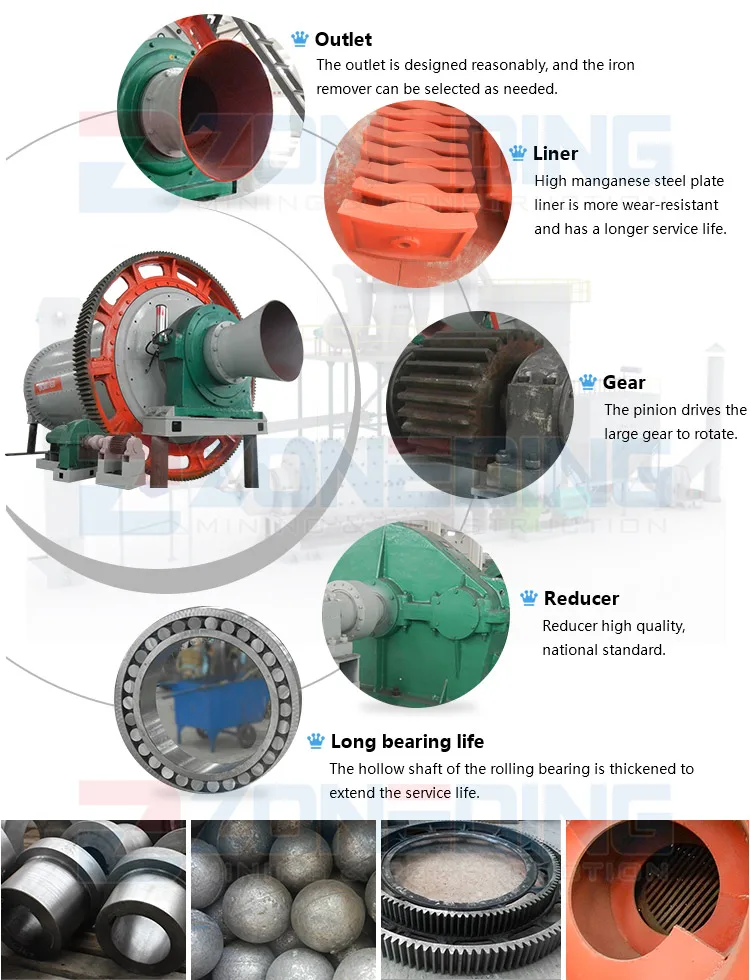

Product Features

Energy saving 900*1800 grinding ball mill machine ball mill prices

Process Flow

Reasonable ball mill machine prices of Gold Mining 900*1800 ball mill grinding ball mill





FAQ:

Q: Do you provide after-sale service?

A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Can you test our samples?

A: Yes. You can send your samples to us for test and analysis.

Q: Do you provide beneficiation flow chart?

A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
