Best selling portable stone crusher pe500*750 mini jaw crusher

FOB Reference Price:Get Latest Price
$1,000.00 - $20,000.00 / Set | 1 Set/Sets (Min. Order)
Power(W):
30-132 kw
Model Number:
PE and PEV Series
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Energy & Mining
Local Service Location:
None
Showroom Location:
None
Condition:
New
Type:
Jaw Crusher
Application:
Mining, Construction,
Motor Type:
AC Motor
Capacity(t/h):
20-500 tph
Place of Origin:
China
Brand Name:
ZONEDING
Dimension(L*W*H):
According to different models
Weight:
7.02-42.5 t
Certification:
ISO, BV, CE
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Energy Saving Diesel Engine Jaw Stone Crusher For Sale
Crusher type:
Primary crusher
Processed materials:
Stones and ores
Spare parts supply:
Paid
Operation training:
provision of service
Installation and adjustment:
Provide
Flowchart:
Provide
Color:
Customerized
Price:
Negotiable and reasonable
Warranty:
1 Year
Supply Ability
Supply Ability:
90 Set/Sets per Quarter Energy Saving Diesel Engine Jaw Crusher For Sale
Packaging & Delivery
Packaging Details
Export standard container or as customers' requirements.(Energy Saving Diesel Engine Small Mini Jaw Crusher For Sale )
Port
Qingdao, Shanghai, Dalian Port for Energy Saving Diesel Engine Small Mini Jaw Crusher For Sale Export
Video Description

Product Attribute

Jaw Crusher Main Attribute

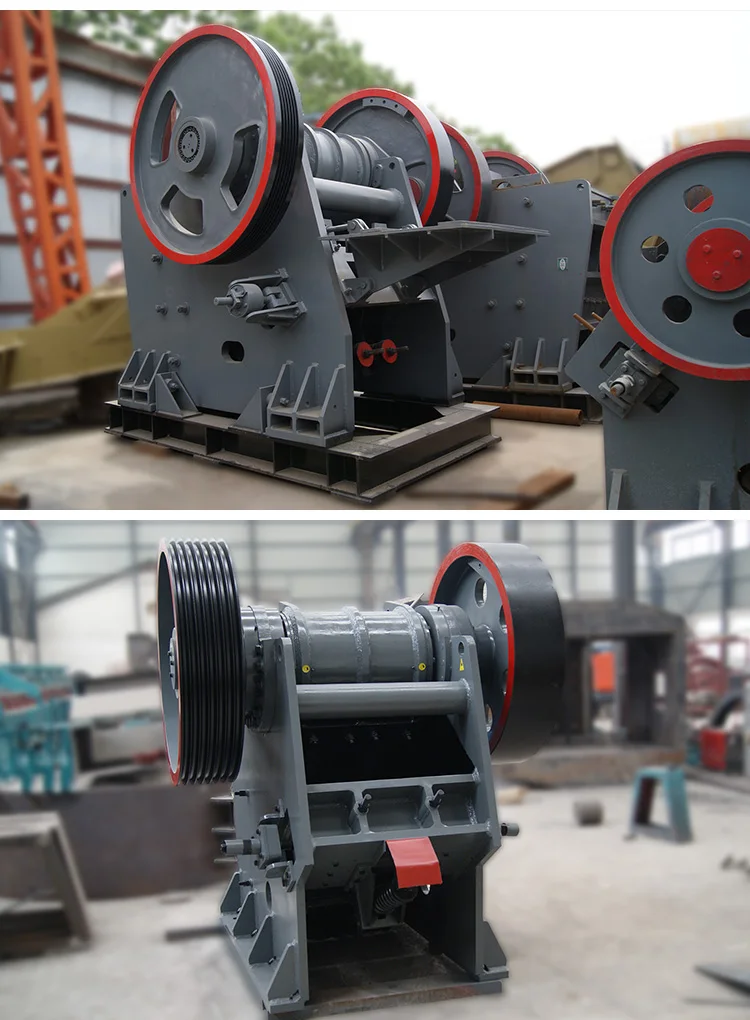

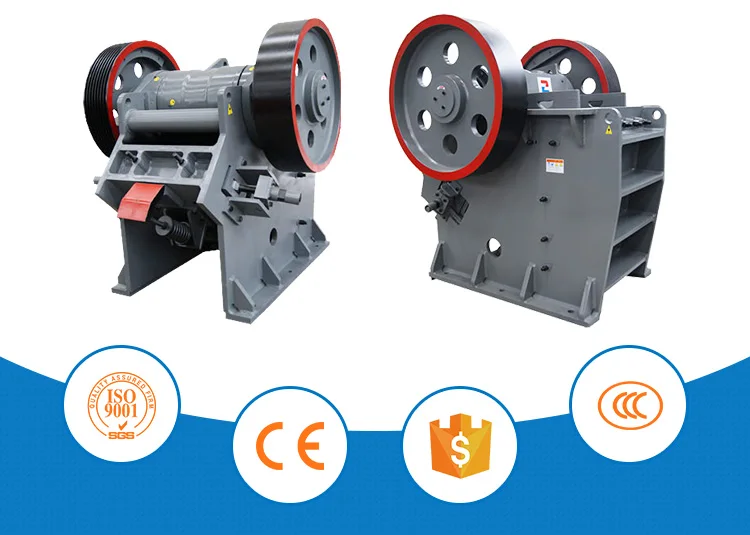

PE Series Jaw Crusher

Zoneding PE Jaw Crusher is widely used as primary and secondary crushing equipment to crush
almost all kinds of stones and ores. It is widely used in mine, metallurgy, chemical industry,
building material, highway, railway, and water conservancy etc.

Jaw Crusher Details

Working Principle

The motor transmits through belt, drives the moving jaw to do periodic motion towards the
fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases
when mobile jaw moving. So the mobile jaw moves towards the fixed jaw. The stuff will be
crushed in this process. The angle between toggle plate and moving jaw decreases when
moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring,
the final crushed stuff will be discharged from the outlet.

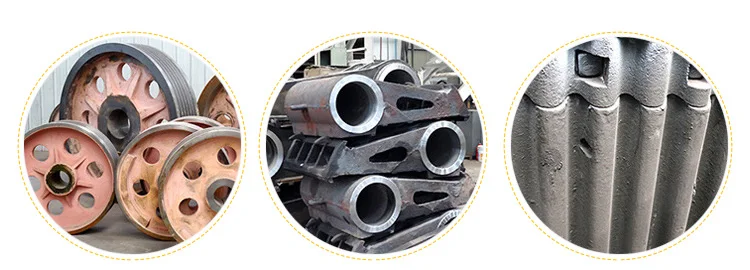

Flywheel
Jaw head
Jaw plate

Unique flywheel design,
effectively reduce the vibration

Unique structure
extend bearing life

Reversible high manganese
steel casting structure,
extended service life

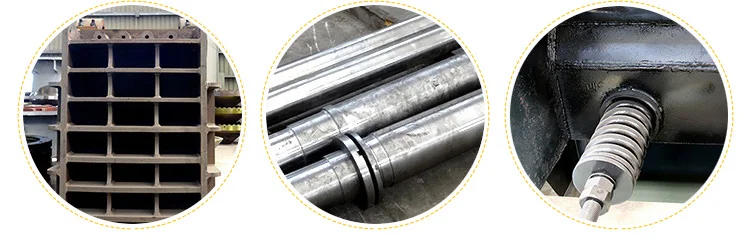

Frame
Eccentric shaft
Moving rods

Durable design Steel plate
welded structure

Large diameter design
Suitable for heavy machinery

Cast iron shaft plate to
improve the insurance factor,
Protecte crusher components

Technical Parameters

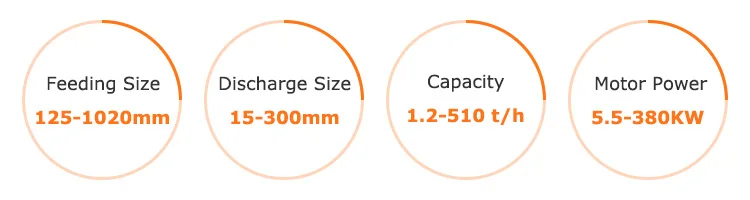

BrandZONEDINGTypePrimary crusher
Capacity1.2-510 t/hFeed Size125-1020 mm
Processed MaterialsIron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc.
ApplicationsMining, metallurgy, construction, highway, railroad, and water conservancy, etc.
Features

1. Large crushing ratio and even product size.

2. Large and reliable adjusting range of discharge port.

3. Safe and reliable lubrication system, easy maintenance and spare parts replacement.

4. Simple structure and low operation cost.

5. Low noise and little dust.

ModelInlet size (mm)Max
feeding size (mm)
Adjusting
range of outlet (mm)
Capacity (t/h)Motor (kw)Weight (t)Overall dimension (L×W×H) (mm)
PE-150150×25012515-451.2-3.55.50.8950×1100×1100
PE-250250×40021020-605-22152.81450×1350×1500
PE-400400×60035040-8018-603071700×1800×1650
PE-500500×75042550-10043-1025510.62270×2370×2145
PE-600600×90050065-16051-1807516.53000×2500×2600
PE-750750×106063080-18080-195110292526×2410×2780
PE-900900×120078095-180140-270132522960×2760×3530
PE-10001000×1200850195-280190-310132553889×2826×3025
PE-12001200×15001020150-300260-510180100.94930×3548×3702
PEX-150150×75012018-408.5-28153.81300×1750×1200
PEX-250250×75021025-6015-35305.51400×1750×1400
PEX-250250×100021025-6020-653071400×1980×1440
PEX-250250×120021025-6025-75458.51400×2180×1440
PEX-300300×130025025-9030-10575111560×2350×1600

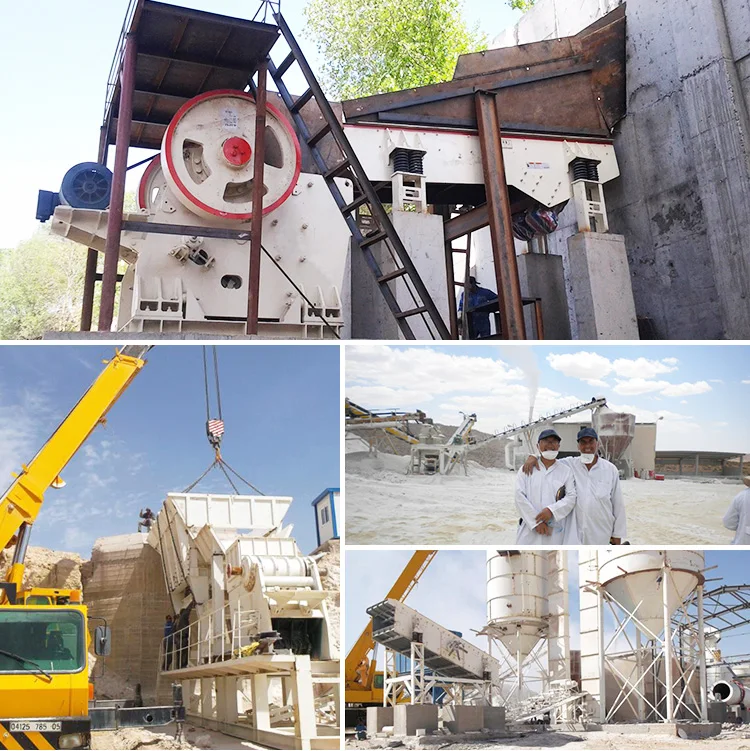

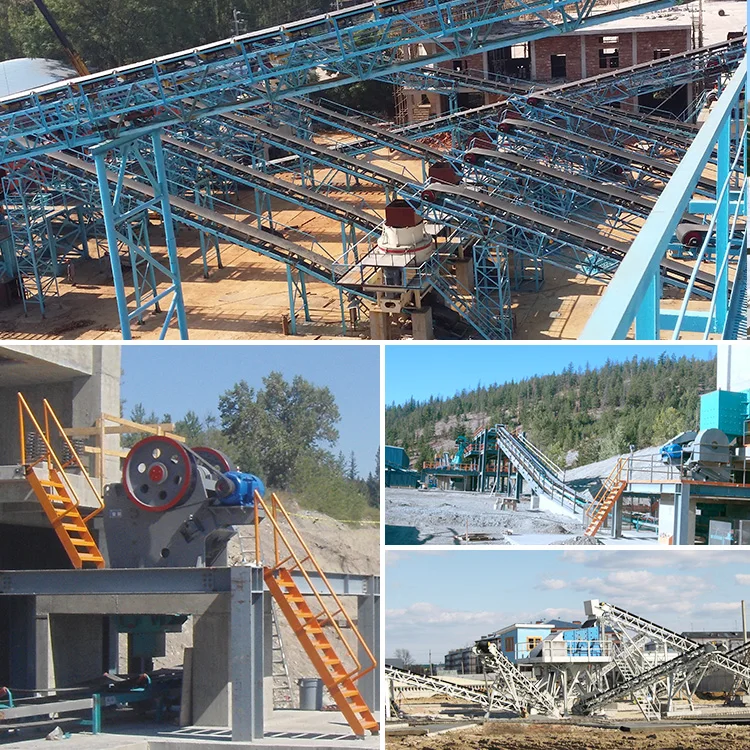

Customer Case

Algeria Gypsum Crushing and Drying Plant

Capacity: Crushing 150T/H, Drying 15T/H

Main Equipment: Jaw Crusher PEV750 X1100, Vibrating Feeder GZD1100 X4900, Vibrating Screen 2YK2160, Impact Crusher PFW1315-Ⅲ, Drum Dryer Φ 1.8m×16m.

Canada 200-300TPD Lead & Zinc Ore Processing Plant

Main Equipment:Jaw Crusher PEV500 X750, Vibrating Feeder GZD900X3800, Spring Cone Crusher PYB900 PYB1200, Vibrating Screen 2YK1548, Rotary Dryer Φ1.2m×11.8m, Ball MillΦ1500×3000 Φ2100×4000, Vacuum Filter ZPG40, Bucket elevator TH200 X8.5m.
